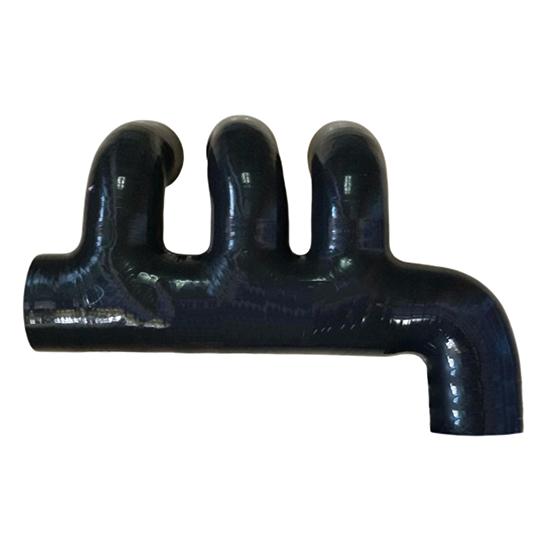

Custom Silicone Turbo Hose Turbochargers Tube

Manufacturing silicone turbo hose in high temp grade silicone material. Silicone hose for turbo / Superchargers, etc. Custom silicone turbo hose coupler for auto industry, such as for exhausting gas, engine construction, engine warming.

  • Product origin:

    China
  • Color:

    Any Color as requested
  • Min order:

    10pc
  • Shipping port:

    Xiamen Port, China
  • Lead Time:

    3~5 weeks
  • H.S. Code:

    39173900

Custom silicone turbo hose with auto industry requirements is possible in SUNRISE! SUNRISE is a professional silicone turbo hose manufacturer and good at making silicone turbo hose,silicone supercharger hose per your requirements. SUNRISE can produce complex shape silicone hose for your unique applications. We can produce various silicone turbo hose kit according to your drawings or samples and provide quality assurance.


Silicone turbo hoses transfer pressurized air in turbocharger, supercharger and charge-air-cooler systems. Their construction should suit the operating temperature, boost pressure and engine environment.


Silicone Turbo Hose Features and Benefits:
- Endure a wide range of High and low temperature.
- Resistant to hardening, cracking, ozone attack, sunlight, chemicals.
- Resist moisture, steam, dust, aging, various pressure range
- Retain flexibility in hostile engine environments.
- Excellent electrical insulating properties.
- Longer life than EPDM (Rubber).


Additional technical considerations:

- Reinforcement: Polyester and aramid fabrics are common reinforcement options for silicone turbo hoses. The -appropriate material and number of reinforcement layers depend on operating conditions.

- Oil-mist exposure: Where pressurized air contains oil mist or hydrocarbon residues, a fluorosilicone/fluororubber inner lining may be considered, subject to application requirements.

- Vibration and fitment: Hose dimensions, reinforcement and connection geometry should suit the installation space and normal engine vibration.


Silicone Turbocharger Hose Use:
a. For transmission hot and cold air.
b. For printing machines, blowers and compressors.
c. For exhausting gas, engine construction, engine warming, aircraft construction and military construction.


Typical applications also include turbocharger and intercooler connections in cars, trucks, buses and industrial engines, where heat, boost pressure and vibration affect hose selection. Direct exhaust-gas applications require separate material and temperature verification.



Silicone Turbo HoseSilicone Turbocharger Hose


Application:
1.Heating and Cooling Systems
2. CAC Charge-Air-Cooler (Hot & Cold side)
3.Turbo Charger Systems & Custom Compressor,
4.Intercooler or Intake & Inlet Piping for turbo/Superchargers. etc.


For hot-side and cold-side connections, operating temperatures may differ, with higher temperature requirements on the hot side,so each hose position should be assessed separately. Working pressure, hose dimensions and material compatibility should also be checked against the requirements of the intended application.

Technical Data Reference

Operating temperature
Approximately −55°C to +260°C across selected products
Wall thickness
Approximately 3–8 mm in selected reinforced products
Hardness
60–80 Shore A in selected product ranges
Working pressure
Varies significantly with hose diameter and construction; individual product specifications must be checked
Reinforcement
Polyester or aramid fabric, among other available options
