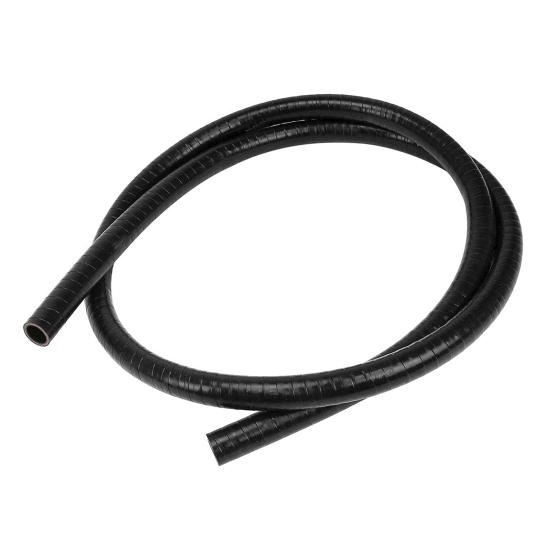

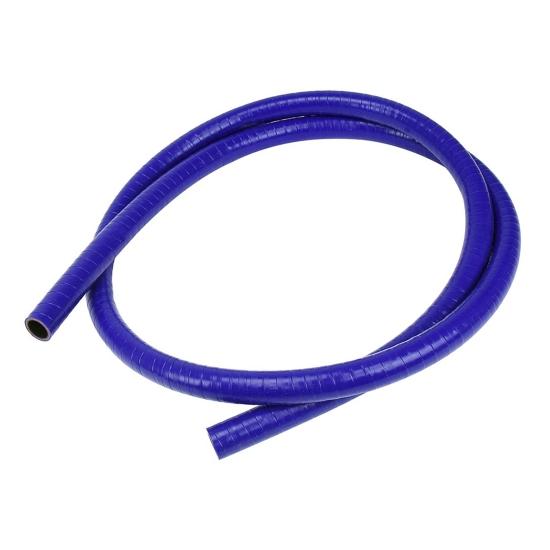

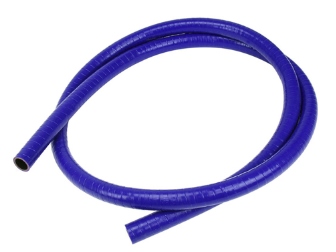

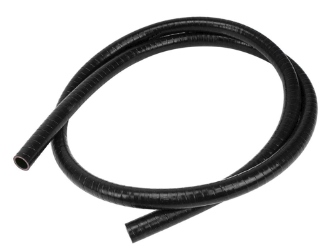

The SUNRISE FKM lined silicone hose is a specially developed hose with a fluoroelastomer liner in our world class silicone hoses. Sunrise's FKM lined silicone hoses with various inside diameter can provide superior resistance to the harshness of gasoline, diesel, and many automotive oils. SUNRISE's FKM lined hose has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals. FKM can handle momentary flow of ethanol based fuels.
Technical Specification
- Product Type: FKM Lined Silicone Hose
- Reinforced Layer: 2-ply Polyester Reinforced
- Temperature Range: -65 deg. F to 392 deg. F (200 deg. C)
- Maximum Working Pressure: 60psi
- Hose Inside Diameter (optional): 1/4" (6mm), 5/16" (8mm), 3/8" (9.5mm), 1/2" (13mm),
5/8" (16mm), 3/4" (19mm), 7/8" (22mm), 1" (25mm)
- Wall Thickness: 4mm +/- 0.2mm
- Bend Radius: 1-1/2"
- Color: Black or Blue
- UV and ozone resistant
Recommended uses with SUNRISE FKM lined silicone hoses
- Fuel Return
- Fuel Ventilation
- Crankcase Ventilation
- Turbo Oil Return
- Power Steering Return
- Automatic Transmission Oil Cooler
REMARK
- Do NOT use the hose to handle alcohol fuel continuously
- Do NOT fully submerge the hose in fuel during use.
Welcome to custom FKM lined fuel resistant silicone hose from Sunrise Silicone Hose Co.,Limited. Sunrise is professional silicone hose manufacturer in China and is ISO 9001 and IATF 16949 certificated by TUV.
