How To Custom Silicone Hoses From SUNRISE?

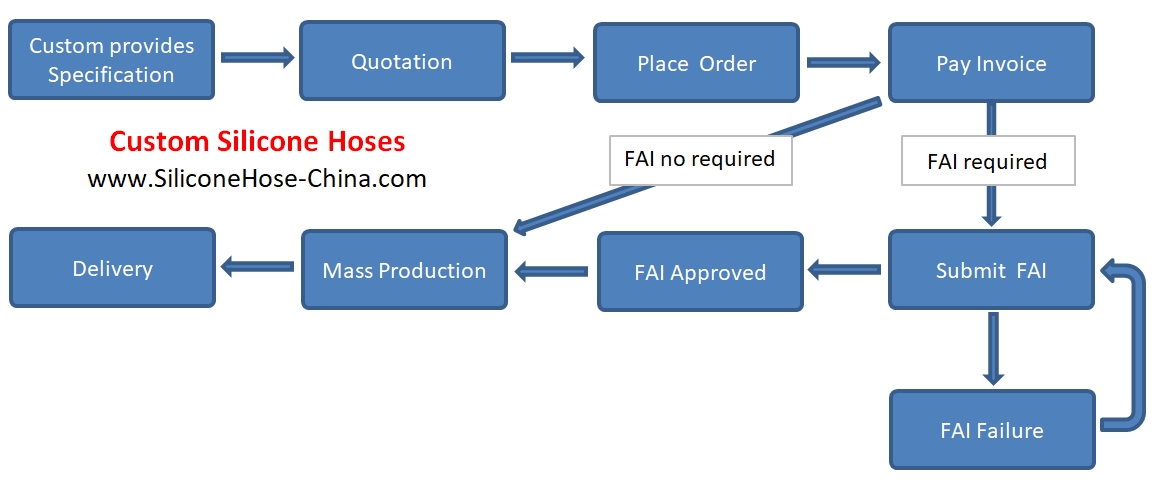

Flow Chart of Custom Silicone Hoses:

Follow below guide for more details.

1. Customer provides specification of the hose to be customized.
a. For simple items, we accept description of specification.
For example (1):

MOQ=10 pc, first article for validation is acceptable,

45 degree silicone hose, ID 60mm, leg length 6.0”, 4ply reinforced, 5.0mm wall THK, black color.

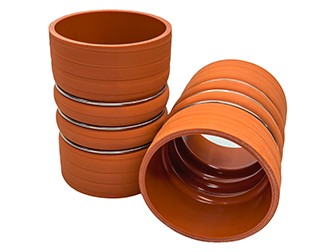

CAC hose, ID 3.0", 4" length, reinforced aramid, with 3 humps and 3 steel rings, red color.

Please state if it works under oil or chemical, extremely high temperature, high pressure.

For example (2),

MOQ=100 meter,

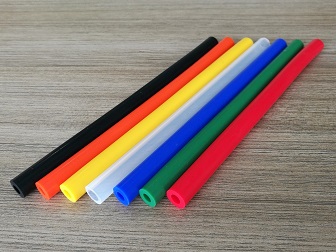

silicone tubing inner diameter 12mm, wall thickness 3mm, blue color.

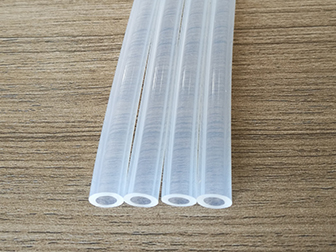

food grade hose inner diameter 20mm, wall outer diameter 28mm, clear.

For example (3),

MOQ=100 meter,

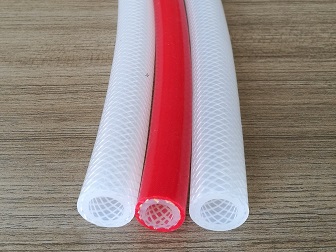

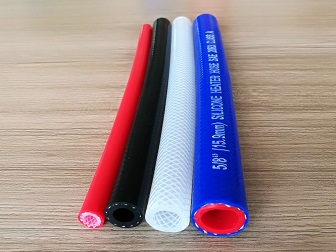

braided silicone hose inner diamer 10mm, wall thickness 4mm, clear inside and outside red, food grade.

please state know if it works under high pressure.

b. For a simple part, we can accept sketch or 2D drawing.
c. For a complex part, we need 3D drawing in format .igs and .stp.
d. We can print your logo onto each hose if private labeling is requested
We accept logo drawing in format .pdf, .jpg, etc.

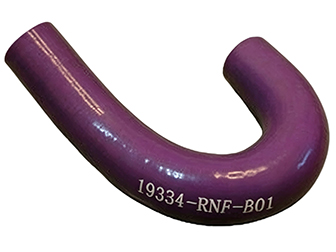

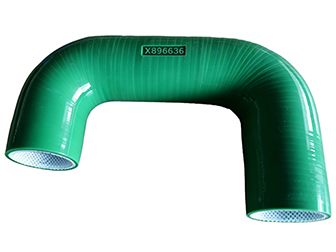

We also can print part number onto silicone hose if necessary.

Click here to review more marking information.

e. SUNRISE also can duplicate hose from customer’s prototype.
The prototype could be a handmade sample or a used hose.

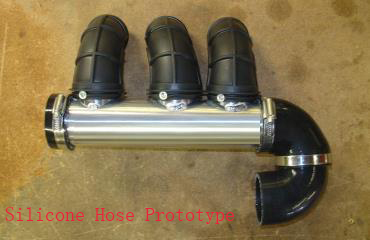

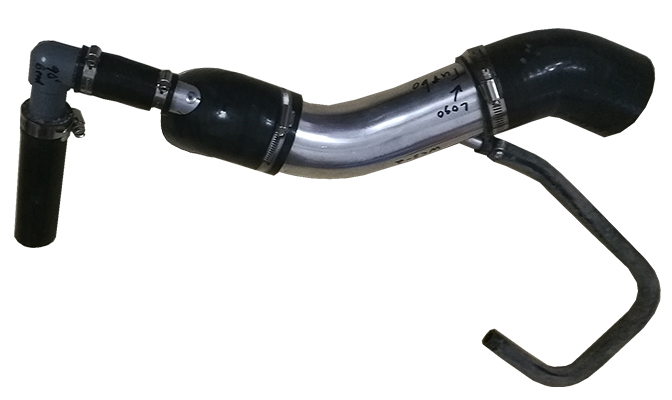

Below are photos of some handmade prototype, just for your reference.

Clere here to review some cases of customized silicone hoses.

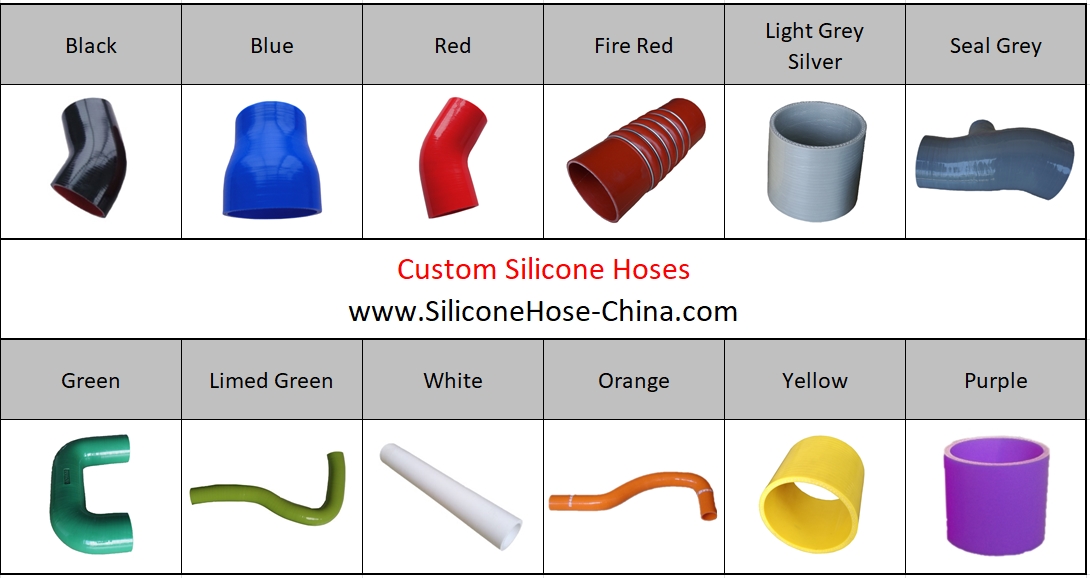

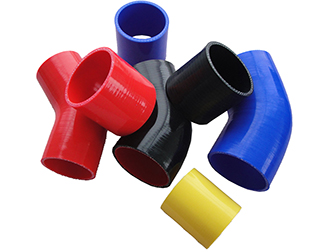

f. Hose color
Customer needs to provide pantone color code or color sample if custom color is requested.
SUNRISE provides regular hose colors for your choice. Please see below table.

2. Quotation
a. We can work out exact costs for you base on your drawing.
b. We can work out rough costs base on photos of the hose.
Inner diameter and hose centerline length is required.
For example, follow below red lines to measure centerline length.

3. Lead time

a. It will take 2~3 weeks for us to fabricate tooling.
b. It will take 2~5 weeks for us to produce hoses.
The production lead time depends on order quantity.
c. It will take 7 days or less on delivery.

4. Payment Terms
a. For small order, the payment term is 100% T/T when order confirmed.
b. For big order, the payment term is 50% T/T when order confirmed and the balance    at shipment.
c. We can accept payment via Paypal or wire transfer.
We prefer to accept payment via Paypal if amount less than USD1000 if possible.

5. Sample verification (FAI)
SUNRISE will send first piece to customer for tests if necessary.
SUNRISE will re-submit FAI samples if customer find something needs to be improved.

6. Mass Production
We will start mass production when you approved the first piece sample.
We can ship out partial hoses for your use in a hurry if you need hoses urgently.

7. Delivery
a. The parcel will be ship via Fedex when ship to USA, Canada and most European countries (Iceland excluded).
The parcel will be ship via DHL when ship to Iceland.
b. For big cargo, it can be ship via ocean.
c. If customer wants, customer can ask their forwarder come to pick up the parcel and freight collect.

8. Certificate

Sunrise is IATF16949 and ISO9001 certificated silicone hose manufacturer by TUV. And silicone hoses meet the

requirements of industrial standard, such as SAE J20, SAE J30,SAE J2006,EN45545,FDA 21 CFR

177.2600,LFGB,Reach,RoHS.

Please click here to review certificates.

Contact us right now to custom silicone hoses! You will get the high quality silicone hoses as you expect.
